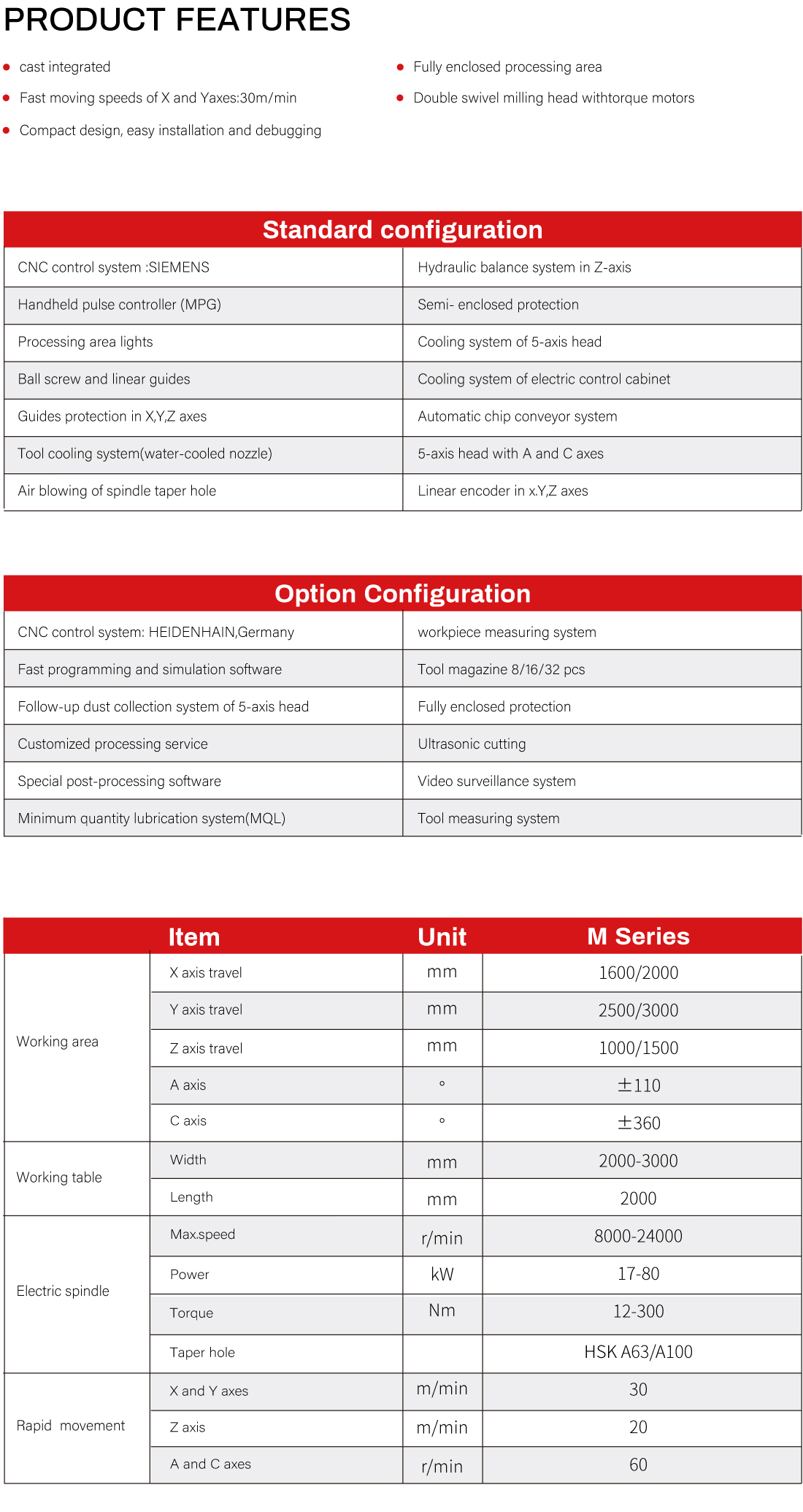

Product features
| ◎ Integrated body | ◎ Compact design, easy installation and debugging |
| ◎ Fast moving speeds of X and Y axes: 30m/min | ◎ Fully enclosed processing area |
| Standard configuration | |
| CNC control system : SIEMENS | Automatic chip conveyor |
| 5-axis head with A and C axes | Processing area lighting |
| Ball screw and linear guide rail | Mobile hand-held pulse generator |
| Guiderail protection in X,Y,Z axes | Tool cooling system |
| Air blowing of spindle taper hole | Z-axis hydraulic balance system |
| Semi- enclosed protection | Five shaft head constant temperature cooling system |
Cooling system of electric control cabinet | |
| Option Configuration | |
| Numerical control system HEIDENHAIN, Germany | Automatic chip conveyor |
| Five axis follow-up dust collection system | Processing area lights |
| Ultrasonic cutting | handheld pulse controller |
| Micro lubrication system (MQL) | Tool cooling system (water-cooled nozzle) |
| Knife library 8/16/32 | Hydraulic balance system in Z-axis |
| Totally enclosed protection | Cooling system of 5-axis head |
| X、Y、Z Three axis grating ruler | |
| Item | Unit | M | |
Working table | width | mm | 2000-3000 |
| length | mm | 2000 | |
Working area | X-axis stroke (front and rear travel) | mm | 2000 |
Y-axis stroke (left and right travel) | mm | 2000-3000 | |
Z-axis stroke (up and down travel) | mm | 1000-1500 | |
| A axis swing angel | 。 | ±110 | |
C axis swing angel | 。 | ±360 | |
Electric spindle | Speed | r/min | 8000-24000 |
| Power | kw | 17-80 | |
| Torque | Nm | 12-300 | |
| Taper hole | HSK A63/A100 | ||
| Rapid movement | X and Y axes | m/min | 30 |
| Z axis | m/min | 20 | |
| A and C axes | r/min | 60 | |
Note: The parameters provided in the list are for reference only. please check the real machine if there is any change.
M-series case presentation
ypical Application: Processing of composite materials, aluminum alloys, titanium alloys, and high-temperature alloy parts.
