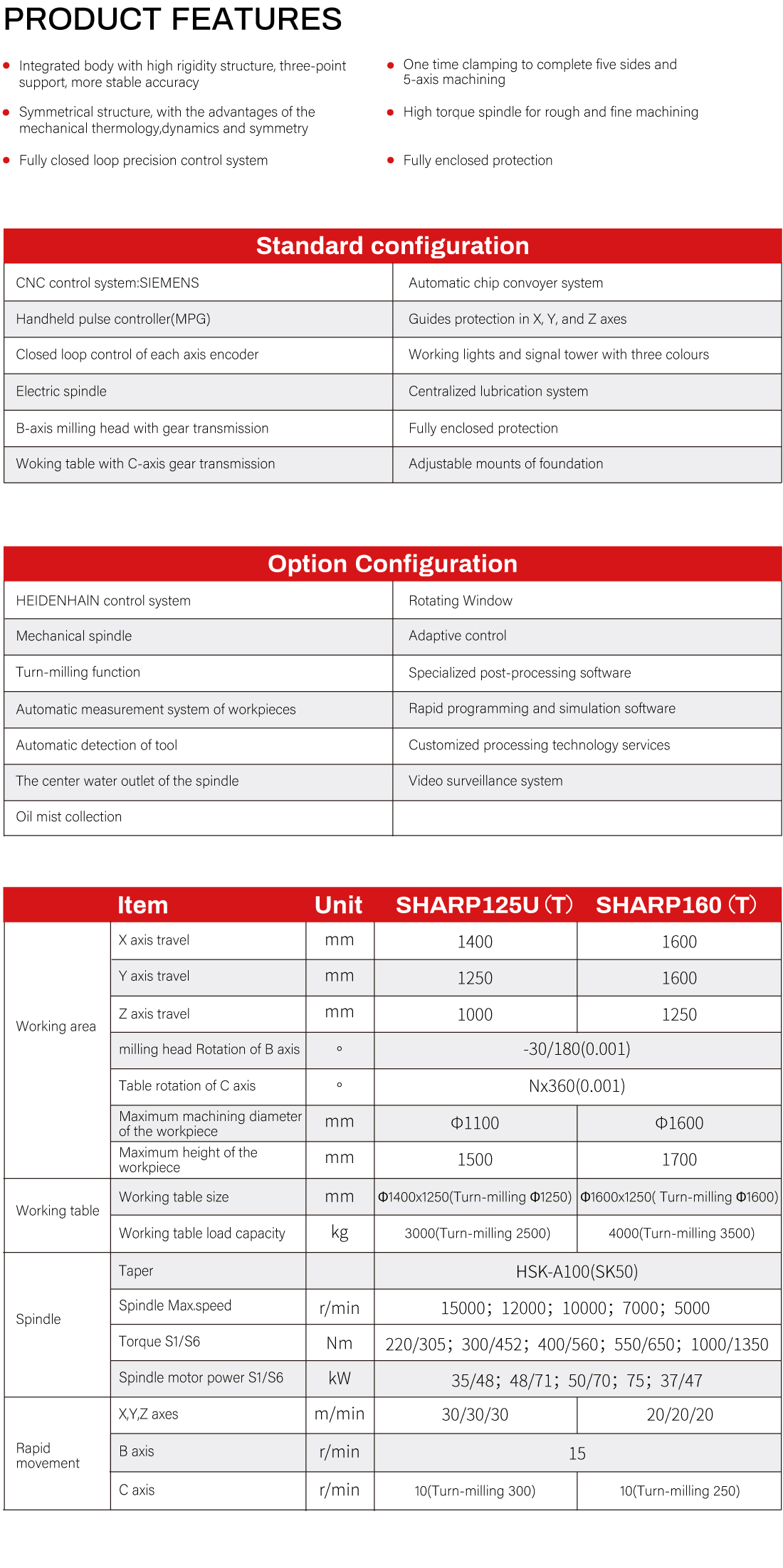

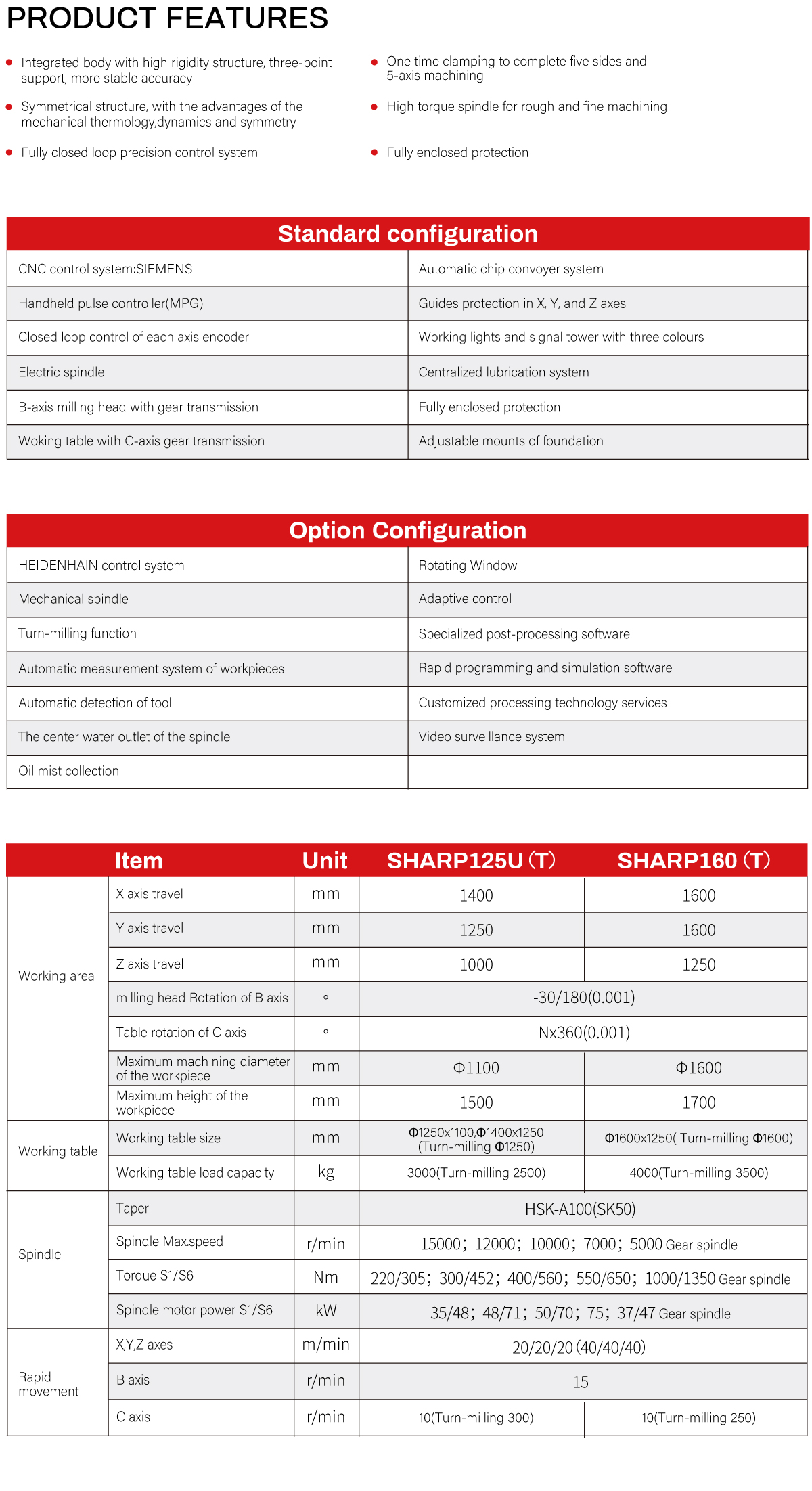

Product features
◎ Integrated body with high rigidity structure, three-point support, more stable accuracy | ◎ Symmetrical structure, with the advantages of mechanical thermodynamics and symmetry |
| ◎ High torque motorized spindle motor for rough and finish machining | ◎ Fully closed loop precision control system |
◎ One time clamping to complete five sides and 5-axis machining | ◎ Fully enclosed protection |
| Standard configuration | |
| Control system Siemens | Operation panel and mobile handheld unit( MPG) |
Working lights and signal tower with three colours | Centralized lubrication system |
B-axis milling head with gear transmission | Automatic chip convoyer system |
Woking table with C-axis gear transmission | Guide rail protection in X, Y, and Z axes |
| Electric spindle | Fully enclosed protection |
Closed loop control of each axis laser scaler | Adjustable mounts of foundation |
| Option Configuration | |
| HEIDENHAIN control system | Rotating Window |
Automatic measurement system of workpieces | Adaptive control |
| Automatic detection of tool number | Specialized post-processing software |
| Turn-milling function | Rapid programming and simulation software |
| The center water outlet of the spindle | Customized processing technology services |
| Oil mist collection | Video surveillance system |
ITEM | UNIT | SHARP 80U | SHARP 100U | SHARP 125U | SHARP 210U | SHARP 270U | |
Working table | Working table size | mm | Φ900×700 (Turn-milling Φ800) | Φ1100×910 (Turn-milling Φ1000) | Φ1400-Φ1600(Turn-milling Φ1250-Φ1600) | Φ1800-Φ2000 (Turn-milling Φ1800) | Φ2200 （Turn-milling Φ2200） |
Working table load capacity | kg | 1500 (Turn-milling 1300） | 2000 （Turn-milling 1600） | 3000 （Turn-milling 2500） | 8000 （Turn-milling 5000） | 12000 （Turn-milling 7000） | |
加工范围 | X axis travel | mm | 800 | 1000 | 1400-1600 | 2100-2500 | 2700 |
Y axis travel | mm | 1050 | 1100 | 1250-1600 | 2100-2500 | 2700 | |
Z axis travel | mm | 850 | 1000 | 1000-1250 | 1250-1500 | 1600 | |
milling head Rotation of B axis | ° | -30/180（0.0001） | -70/180（0.0001） | ||||
Table rotation of C axis | ° | N*360（0.0001） | |||||
Maximum machining diameter of the workpiece | mm | Φ950 | Φ1100 | Φ1800 | Φ2500 | Φ3000 | |
Maximum height of the workpiece | mm | 1300 | 1500 | 1700 | 2300 | 2600 | |
Electric spindle | Taper | HSK-A100（SK50） | |||||
Spindle Max.speed | rpm | 15000; 12000; 10000; 7000 | |||||
Torque S1/S6 | Nm | 220/305; 300/452; 400/560; 550/650 | |||||
Spindle power S1/S6 | kW | 35/48; 48/71; 50/70; 75 | |||||
Rapid movement | X,Y,Z axes | m/min | 30/30/30 | 20/20/20 | 20/20/15 | ||
B axis | r/min | 15 | |||||
C axis | r/min | 15 （Turn-milling 400） | 15 （Turn-milling 300） | 10 （Turn-milling 300） | 10 （Turn-milling 200） | 8 （Turn-milling 150） | |
Note: The technical parameters listed in the above table are for reference only and are subject to change without prior notice.

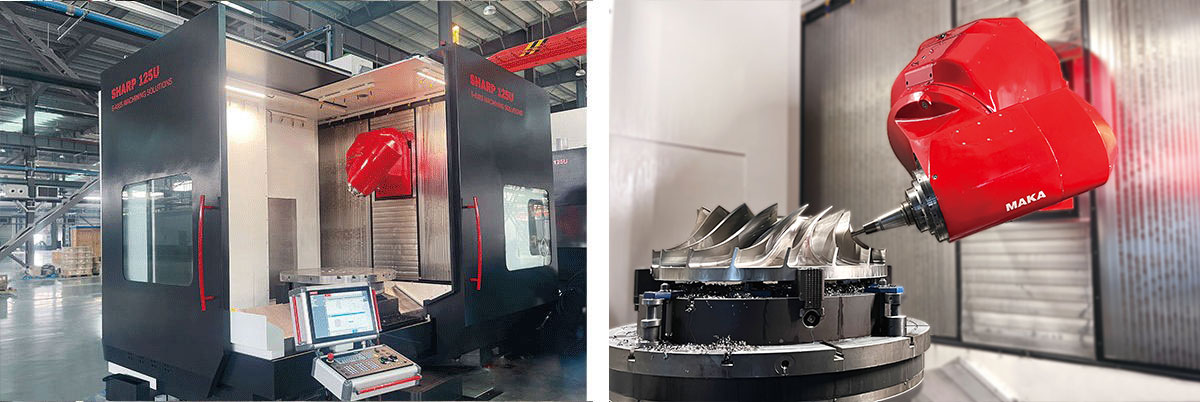

SHARP Series Case Presentation

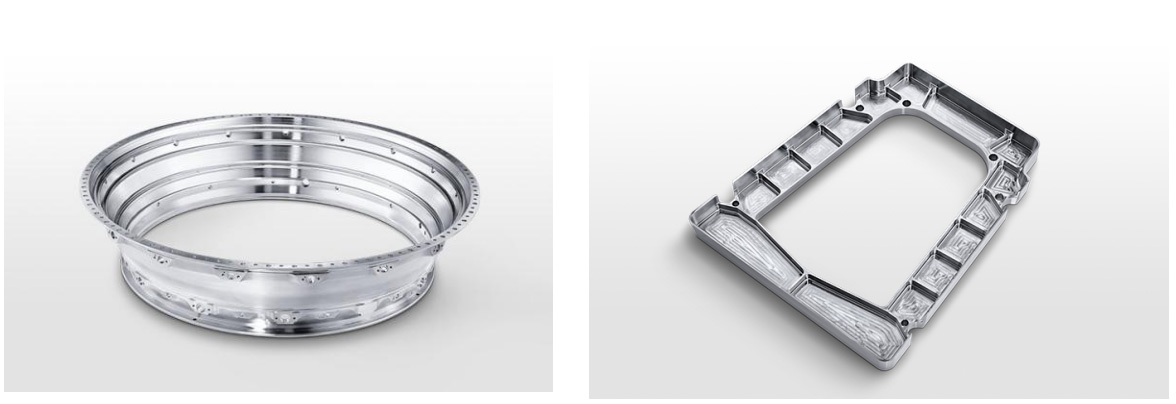

Typical Application:complex parts of difficult to process materials such as titanium alloys and high-temperature alloys.
<
