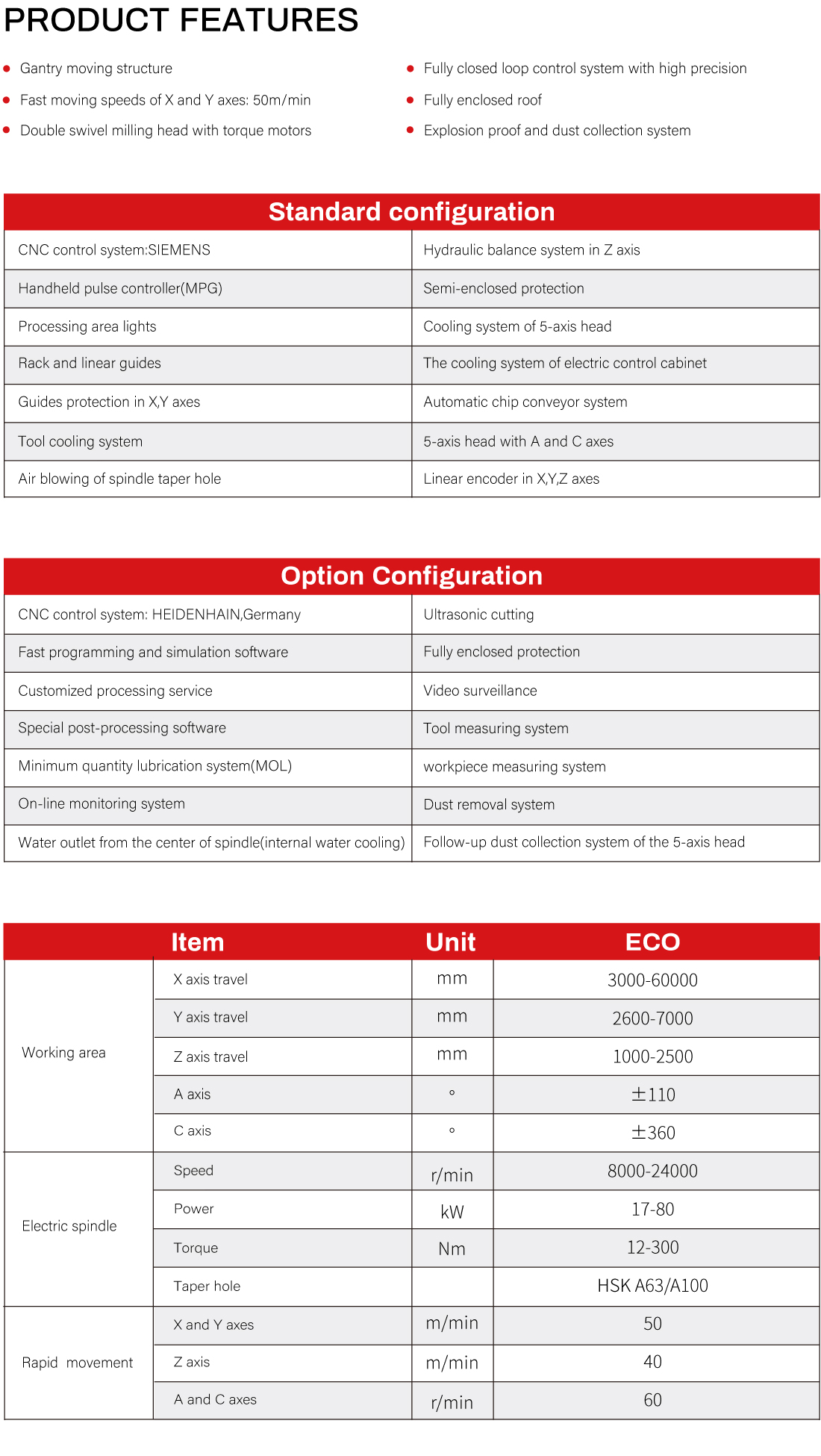

Product features
| ◎ Moving gantry structrue | ◎ Double swing head with torque motors |
| ◎ Fast moving speed of X and Y axes: 50m/min | ◎ Fully closed loop control system with high precision |
| ◎ Fully enclosed roof protection |
| Standard configuration | |
| Control system SIEMENS | The cooling system of electric control cabinet |
| AC double swing five axes head Germany KESSLER | Automatic chip conveyor |
| Imported rack and linear guide rail | Processing area lighting, three color alarm light |
| X, Y guide rail protection | The liquid cooling system of five axes head |
| Grating rulers in X,Y,Z axes | Hydraulic balance system in Z axis |
| Semi-enclosed protection | Pulse handheld controller |
| Blowing dust of spindle taper hole | Bit cooling system |
| Option Configuration | |
| Control system: HEIDENHAIN, Germany | Tool detection |
| Water outlet from the center of spindle motor (internal water cooling) | Fast programming and simulation software |
| Ultrasonic cutting | Automatic measurement |
| Fully enclosed protection | Customized processing technology service |
| Micro lubrication system (MQL) | Online monitoring |
| Special post-processing software | Video surveillance |
| project | Company | ECO | |
| Processing range | X-axis stroke (front and rear travel) | mm | 1500-60000 |
| Y-axis stroke (left and right travel) | mm | 1500-7000 | |
| Z-axis stroke (up and down travel of ram) | mm | 1000-2500 | |
| A axis swing angel | 。 | ±110 | |
| C axis swing angel | 。 | ±360 | |
| Spindle motor parameters | speed | r/min | 8000-24000 |
| power | KW | 17-80 | |
| hilt | HSK A63/A100/BT50 | ||
| Rapid movement | X, Y axis | m/min | 50 |
| Z axis | m/min | 40 | |
| A/C axis | r/min | 60-100 | |
Note: The parameters in the list are for reference only. Please refer to the real machine , if there is any change.

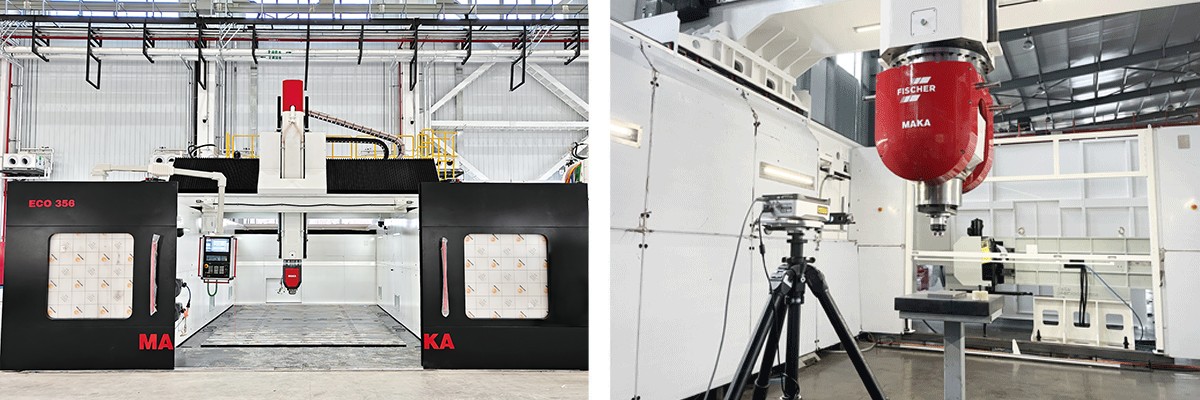

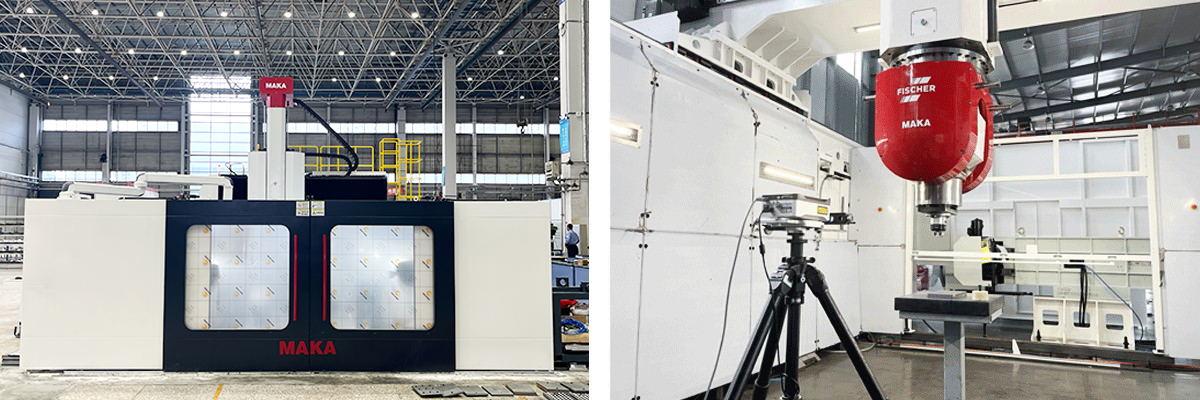

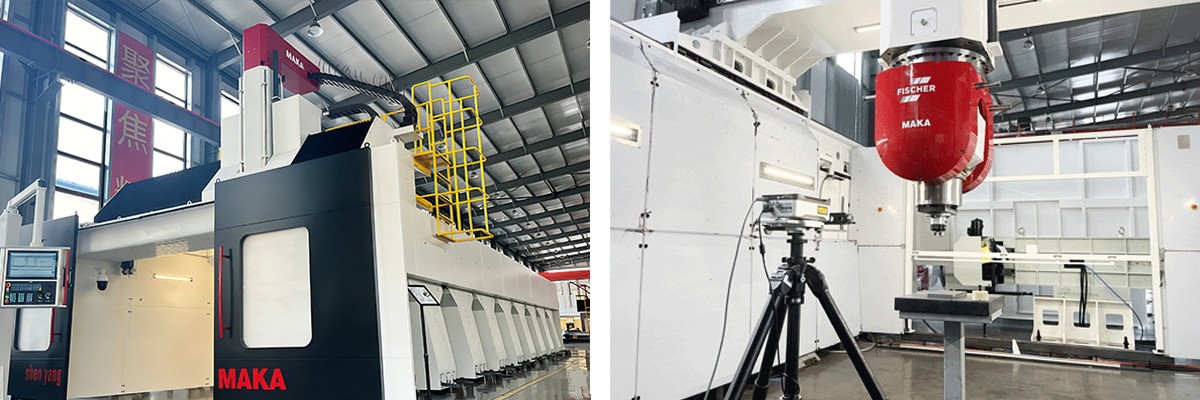

ECO Series Case Presentation

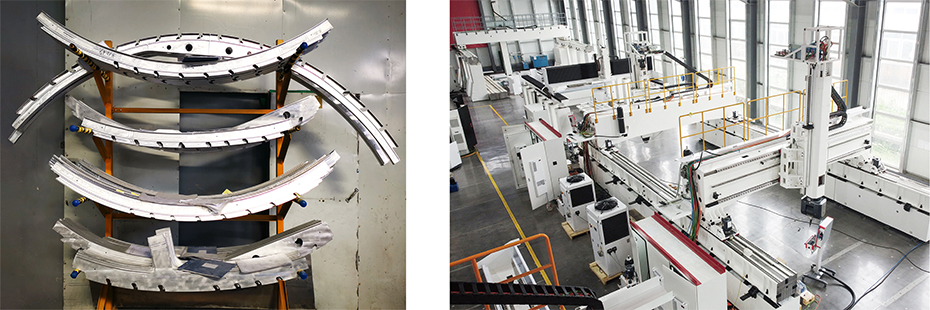

Classic application: processing of large aluminum alloy and other metal structure parts.
