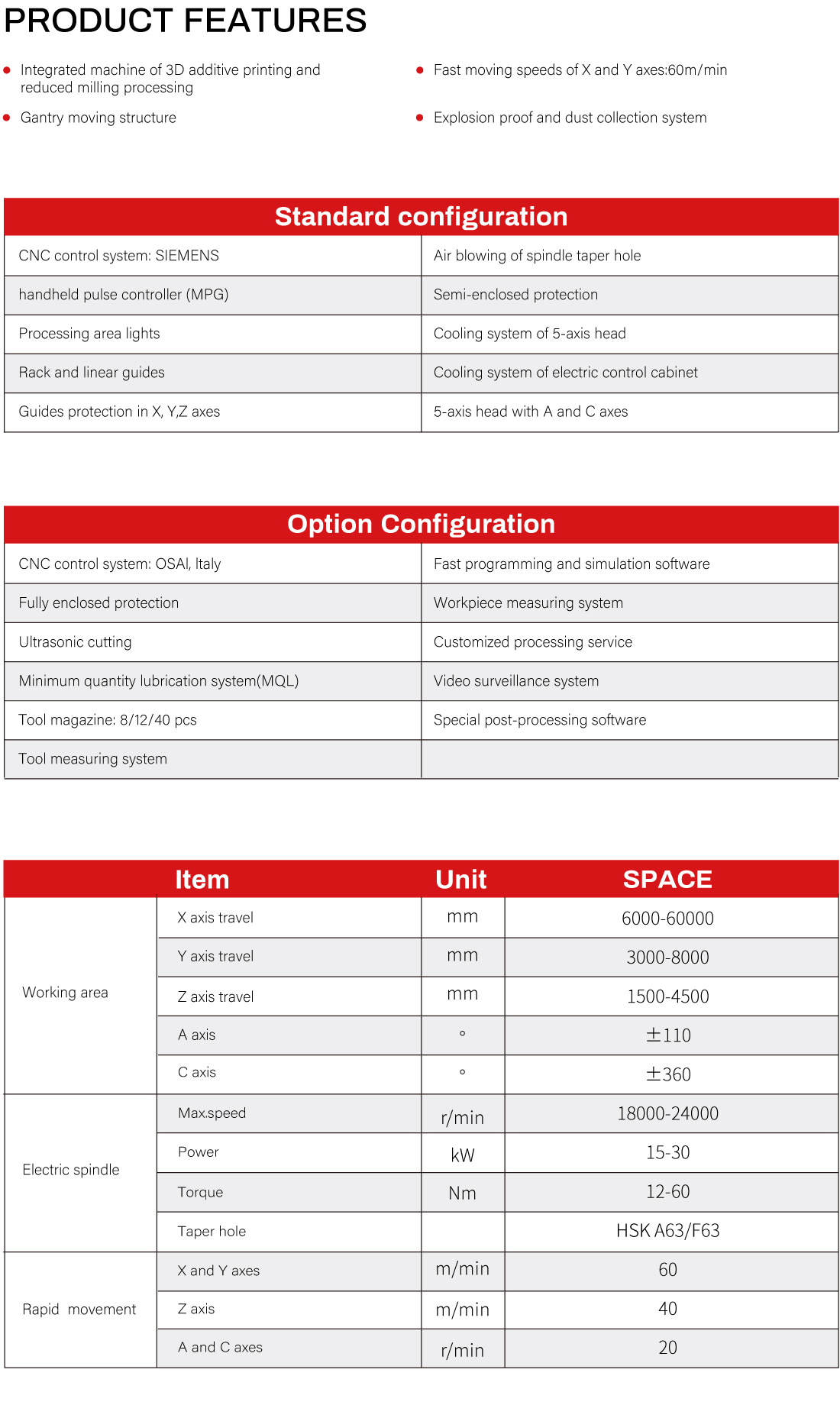

Product features
| ◎ Beam mobile structure | ◎ Integrated machine for increasing and decreasing materials |
| ◎ Fast moving speed of X and Y axes 60m/min | ◎ Explosion proof dust collection system |
| Standard configuration | |
| Numerical control system SIEMENS | Five shaft head constant temperature cooling system |
| AC double pendulum five shaft head | Electric control cabinet cooling system |
| Inlet rack and linear guide rail | Processing area lighting, three color lights |
| X, Y, Z guide rail protection | Semi enclosed protection |
| Cleaning of spindle taper hole | Mobile hand-held pulse generator |
| Option Configuration | |
| NC system Italy OSAI | Tool detection |
| Totally enclosed protection | Fast programming and simulation software |
| Ultrasonic cutting | On line measurement system |
| Micro lubrication system (MQL) | Customized processing technology service |
| Tool magazine 8/12/40 | Video monitoring system |
| Special post-processing software |
| project | Company | SPACE | |
| Processing range | Front and rear travel of cross beam (X-axis) | mm | 6000-60000 |
| Left and right stroke of sliding plate (Y-axis) | mm | 3000-8000 | |
| Up and down stroke of ram (Z-axis) | mm | 1500-4500 | |
| Swing angle of spindle head A | 。 | ±110 | |
| Swing angle of spindle head axis C | 。 | ±360 | |
| principal axis | speed | r/min | 18000-24000 |
| power | KW | 15-30 | |
| hilt | HSK A63/F63 | ||
| Rapid movement | X and Y axes | m/min | 60 |
| Z-axis | m/min | 20-40 | |
| A/C axis | r/min | 60 | |
Note: The parameters provided in the table are for reference only. If there is any change, please refer to the real object.

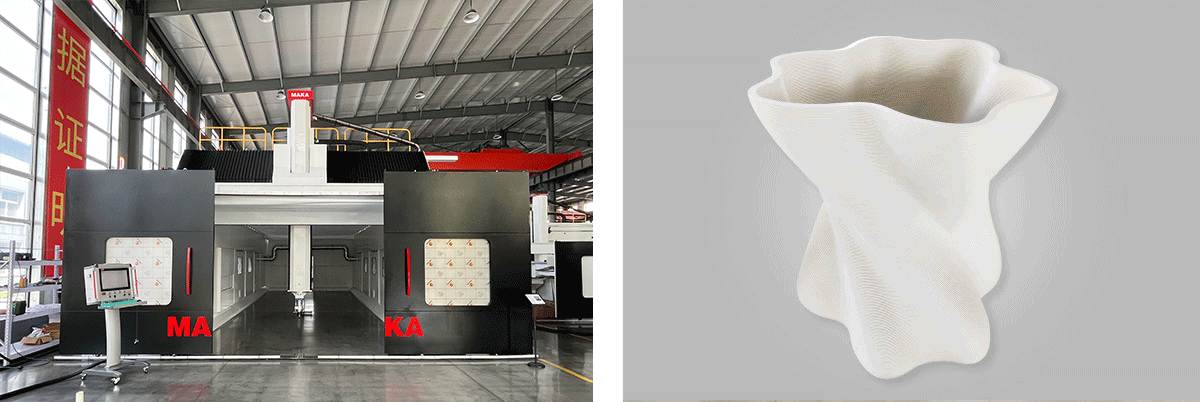

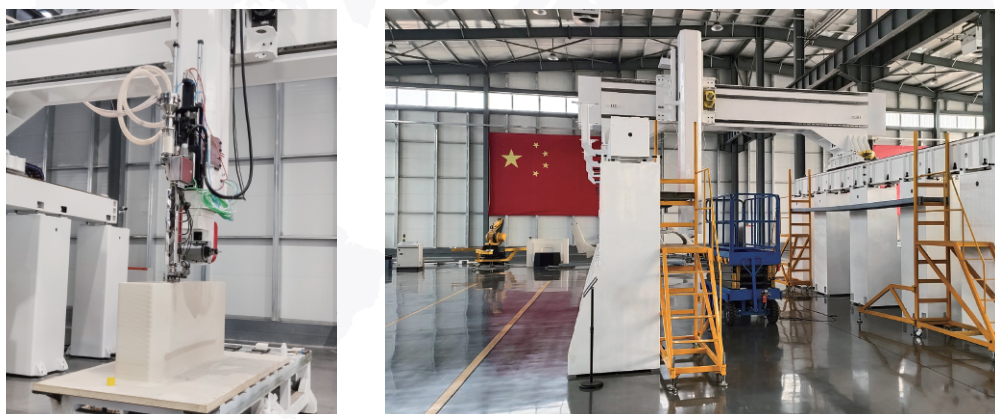

SPACE series case display
Classic application: composite processing of large glass fiber and carbon fiber composite materials
