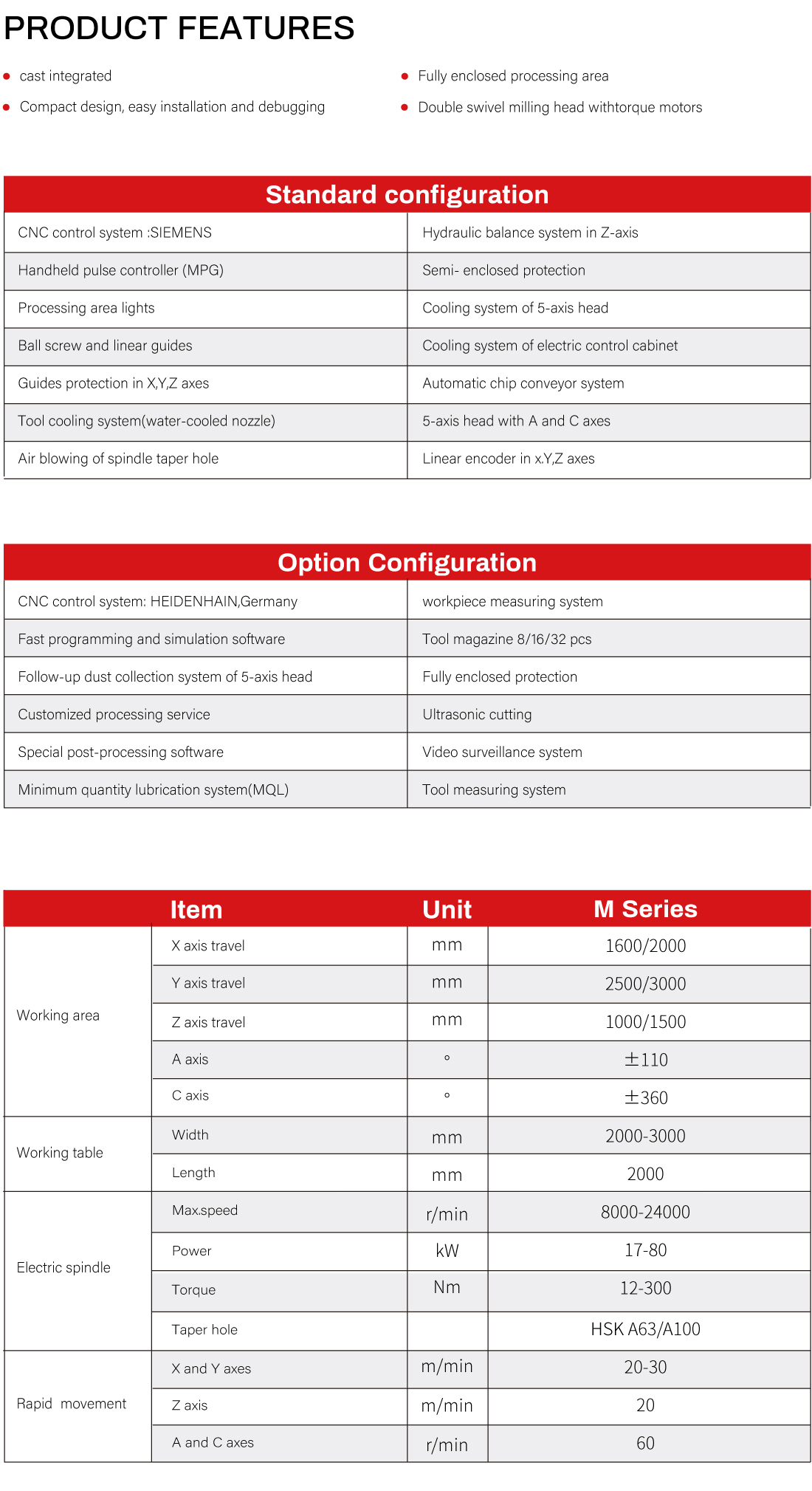

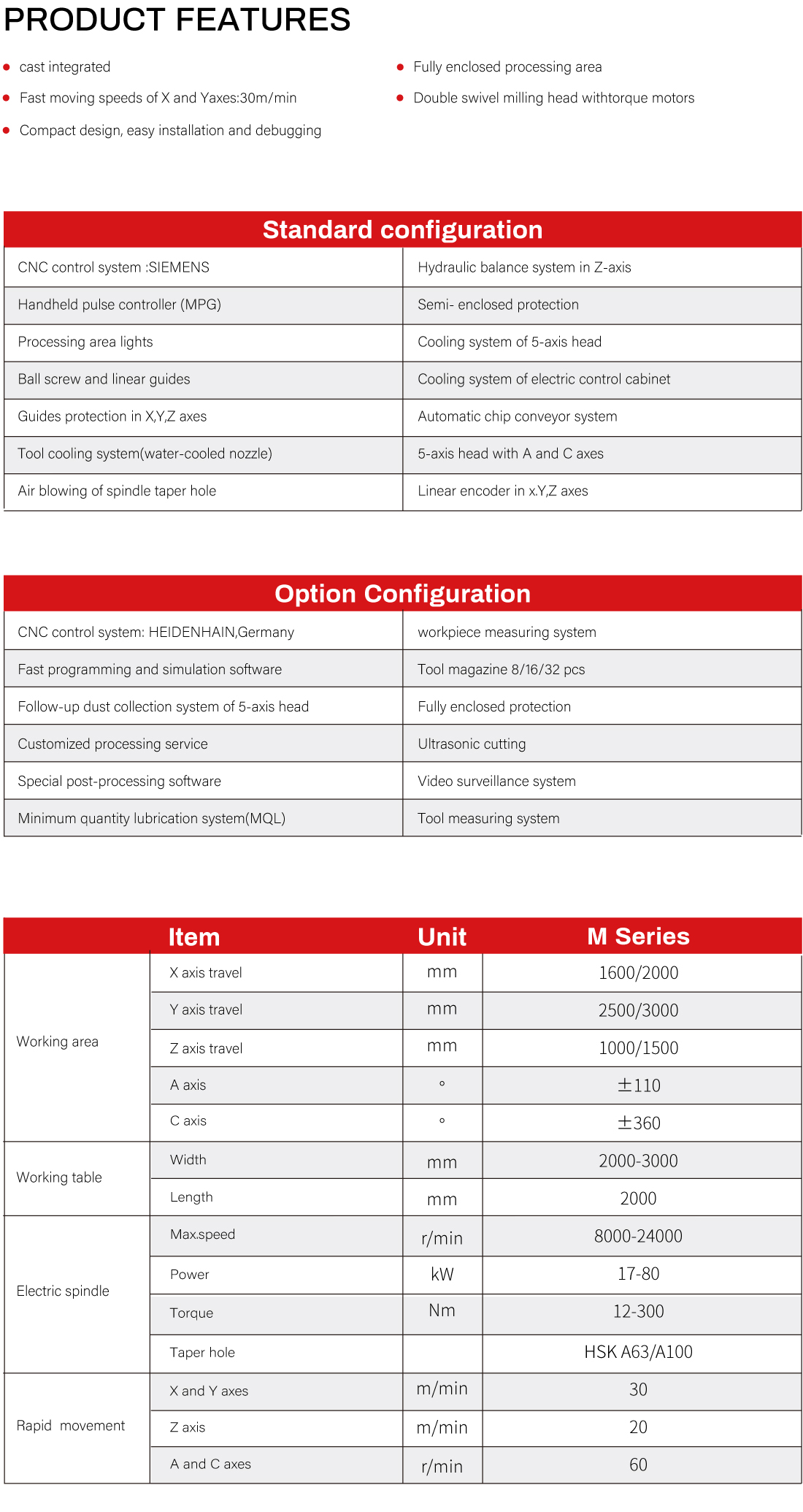

Product features
| ◎ Integrated structure | ◎ Compact design, easy installation and debugging |
| ◎ Fast moving speed of X and Y axes: 30m/min | ◎ Processing area is completely closed |
| Standard configuration | |
| Numerical control system SIEMENS | Automatic chip conveyor |
| AC double pendulum five shaft head | Processing area lighting |
| Inlet lead screw and linear guide rail | Tricolor lamp |
| X、Y、Z Guide rail protection | Mobile hand-held pulse generator |
| Cleaning of spindle taper hole | Tool cooling system (water-cooled nozzle) |
| Semi enclosed protection | Z-axis hydraulic balance system |
| Electric control cabinet cooling system | Five shaft head constant temperature cooling system |
| Option Configuration | |
| New generation of numerical control system in Taiwan | Tool detection |
| Five axis follow-up dust collection system | Fast programming and simulation software |
| Ultrasonic cutting | On line measurement system |
| Micro lubrication system (MQL) | Customized processing technology service |
| Tool magazine 8/16/32 | Video monitoring system |
| Totally enclosed protection | Special post-processing software |
| X、Y、Z Three axis grating ruler | Online monitoring |
| project | Company | M | |
| workbench | width | mm | 2000-3000 |
| length | mm | 2000 | |
| Processing range | Front and rear travel of workbench (X-axis) | mm | 2500 |
| Left and right stroke of sliding plate (Y-axis) | mm | 2000-3200 | |
| Up and down stroke of ram (Z-axis) | mm | 1000 | |
| Swing angle of spindle head A | 。 | ±110 | |
| Swing angle of spindle head axis C | 。 | ±360 | |
| principal axis | speed | r/min | 8000-24000 |
| power | KW | 25-50 | |
| hilt | HSK A63/A100 | ||
| Rapid movement | 10. Y axis | m/min | 30 |
| Z-axis | m/min | 20 | |
| A/C axis | r/min | 60 | |
Note: The parameters provided in the table are for reference only. If there is any change, please refer to the real object.

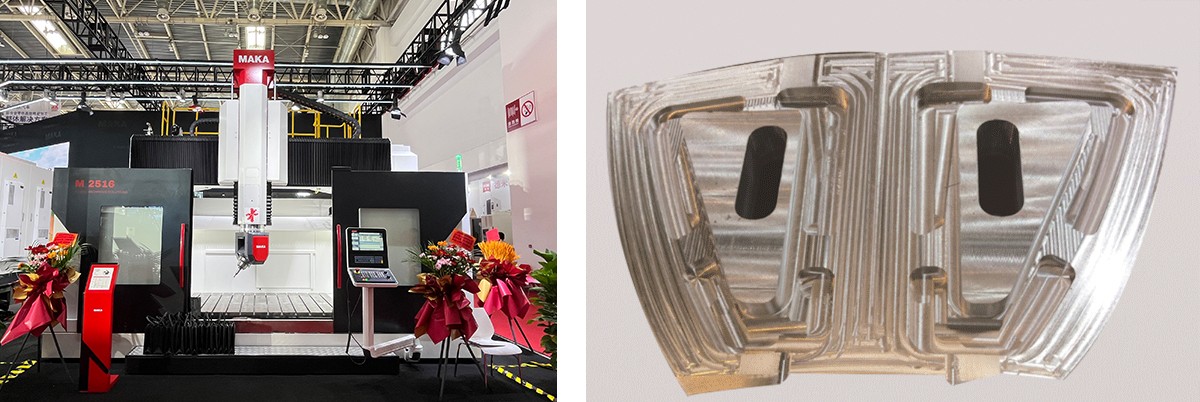

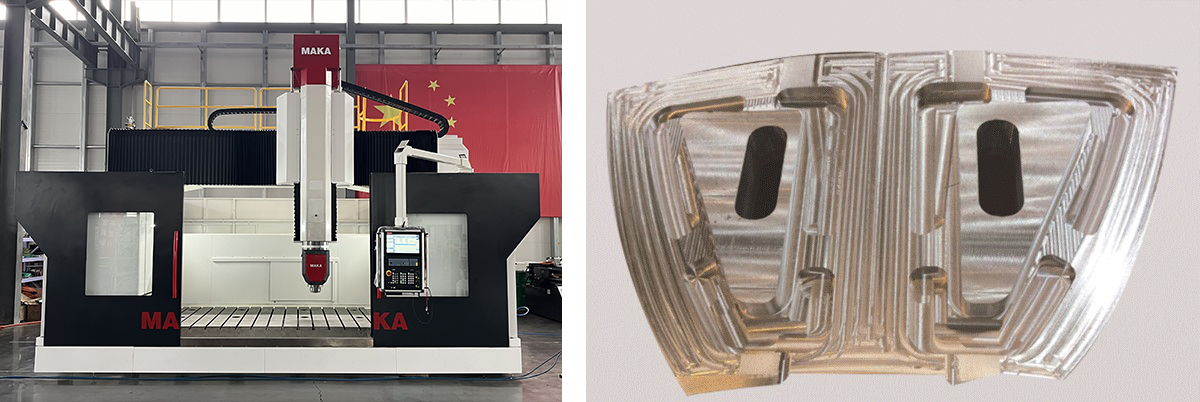

M-series case presentation

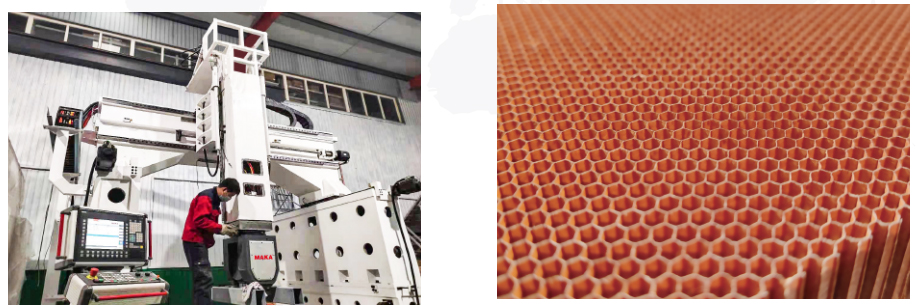

Classic application: processing of titanium alloy and superalloy revolving parts
Customer service 1
Customer service 2
