Product features
| ◎ Integrated structure | ◎ Beam mobile structure |
| ◎ Fast moving speed of X and Y axes 60m/min | ◎ Explosion proof dust collection system |
| Standard configuration |
|
| Numerical control system SIEMENS | Electric control cabinet cooling system |
| AC double pendulum five shaft head | Dust removal system of five axis follow-up dust collection system |
| Inlet rack and linear guide rail | Processing area lighting, three color lights |
| x, y, z rail protection | Semi enclosed protection
|
| Cleaning of spindle taper hole | Mobile hand-held pulse generator |
| Constant temperature cooling system of electric spindle | Dust removal system |
| Option Configuration |
|
| NC system Italy OSAI | Tool magazine 8/12/40 |
| Video monitoring system | Special post-processing software |

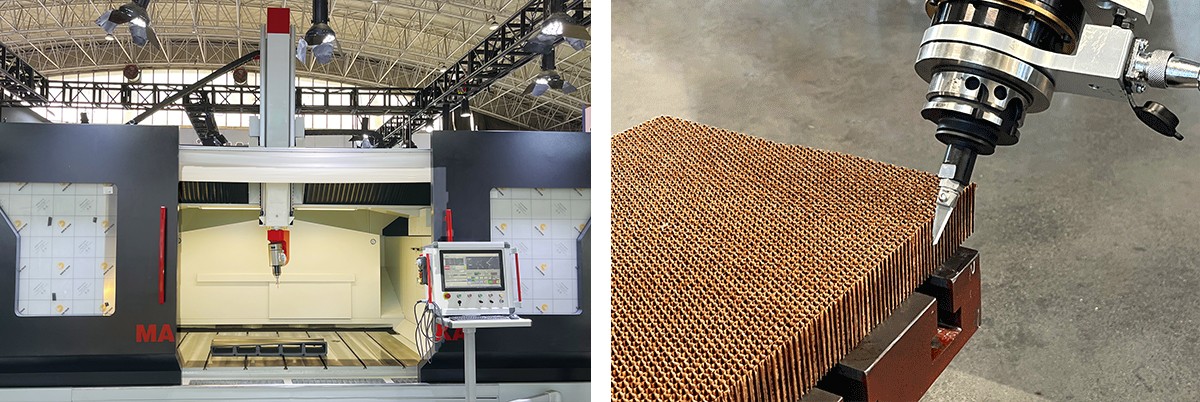

| Ultrasonic cutting | Tool detection |
| Totally enclosed protection | Fast programming and simulation software |
| Micro lubrication system (MQL) | On line measurement system |
| Customized processing technology service |
|

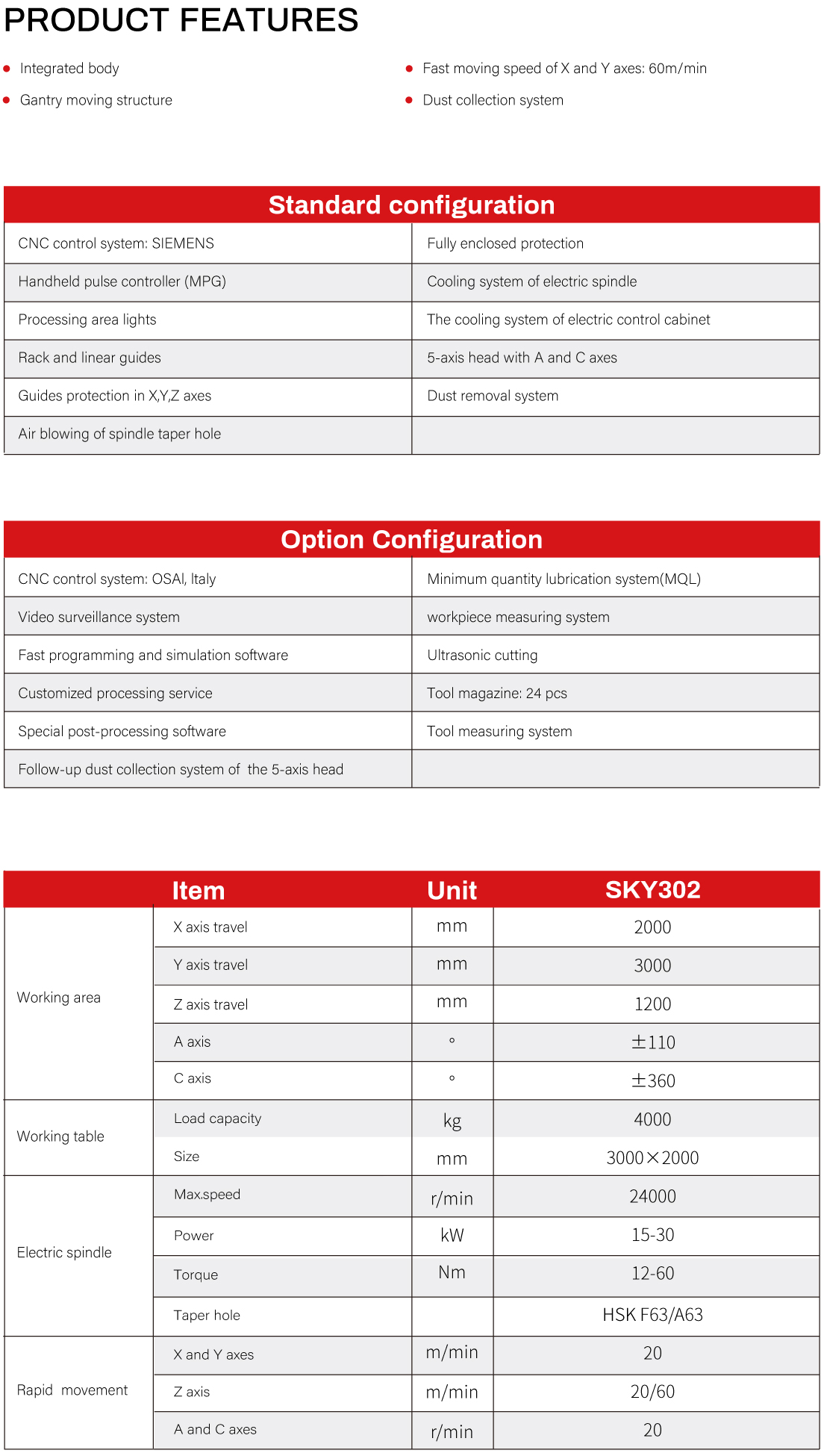

project | Company | SKY302 |
| Processing range | Gantry passage width | mm | 3600 |
| Beam travel distance (X axis) | mm | 2000 |
| Sliding plate travel distance (Y-axis) | mm | 3000 |
| Ram travel distance (Z-axis) | mm | 1000 |
| Distance from spindle end face to worktable | mm | 50-1050 |
| Five axis head rotation (C-axis) | ° | ±360 |
| Spindle swing angle range (A-axis) | ° | ±110 |
| workbench | Worktable bearing | t/m² | 2 |
| Table size | mm | 3000x2000 |
| principal axis | Driving mode |
| High speed direct drive motorized spindle |
| Tapered hole |
| HSK 63F |
| Maximum speed | r/min | 24000 |
| Spindle power | kW | 15-30 |
| Spindle torque | Nm | 12-60 |
| Rapid movement | X、Y axis | m/min | 40 |
| Z-axis | m/min | 25 |
Note: The parameters provided in the table are for reference only. If there is any change, please refer to the real object.
