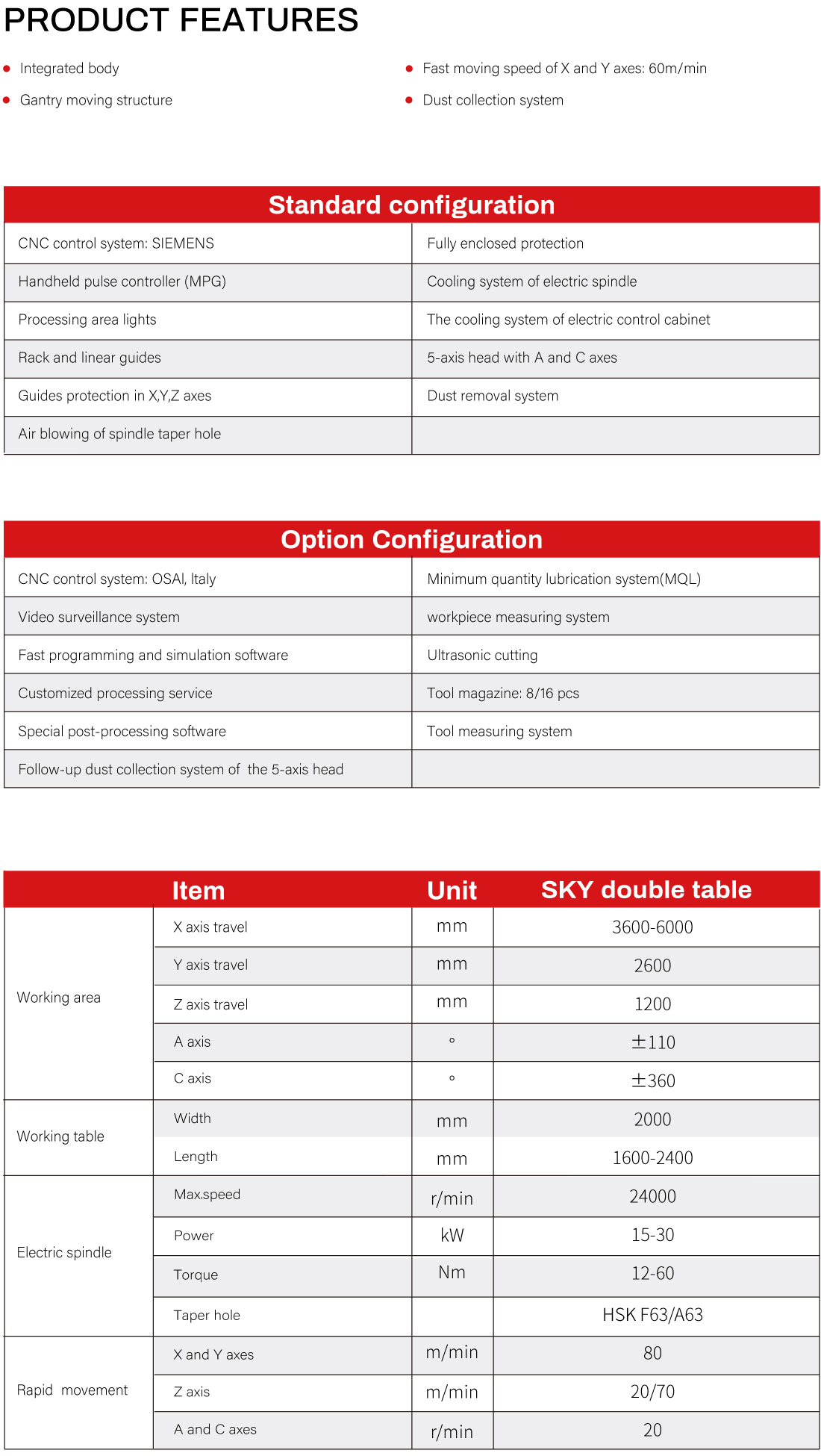

Product features
| ◎ Dual working tables, automatic loading and unloading system | ◎ Gantry moving structure |
| ◎ Fast moving speeds of X and Y axes: 60m/min | ◎ Explosion proof and dust collection system |
| Standard configuration | |
CNC control system: SIEMEN | The cooling system of electric control cabinet |
| 5-axis head with A and C axes | Processing area lights |
| Inlet rack and linear guide rail | Fully enclosed protection |
| Guide rail protection in X,Y, Z axes | Dust removal system |
| Air blowing of spindle motor taper hole | Handheld pulse controller |
| Cooling system of electric spindle | |
| Option Configuration | |
| CNC control system: OSAl, ltaly | Video surveillance system |
Follow-up dust collection svstem of the 5-axis head | Follow-up dust collection system of the 5-axis head |
| Ultrasonic cutting | workpiece measuring systme |
Minimum quantity lubrication system(MQL) | Customized processing service |
| Tool magazine: 24 pcs | Fast programming and simulation software |
| Customized post-processing software | |
project | Company | SKY302 | |
| Working area | X-axis stroke (front and rear travel) | mm | 2600 |
Y-axis stroke (left and right travel) | mm | 3600 | |
Z-axis stroke (up and down travel) | mm | 1200 | |
A axis swing angel | ° | ±110 | |
| C axis swing angel | ° | ±360 | |
Working table | Load capacity | kg | 1500 |
| Size | mm | 2050x1600((two tables)) | |
Electric spindle | Speed | r/min | 24000 |
| Power | kw | 15-30 | |
| Torque | Nm | 12-60 | |
| Taper hole | HSK F63/A63 | ||
Rapid movement | X and Y axes | m/min | 60 |
| Z axis | m/min | 20 | |
| A and C axes | r/min | 20 | |
Note: The parameters provided in the list are for reference only. please check the real machine if there is any change.

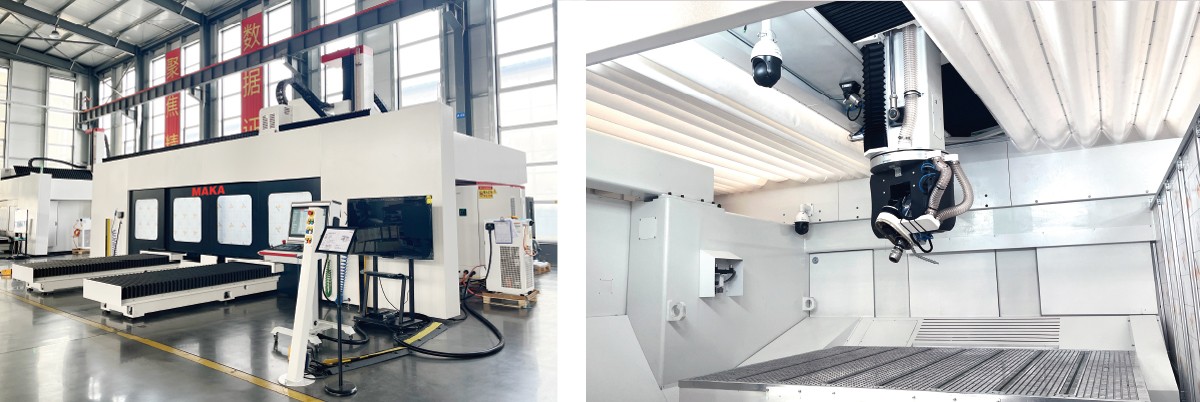

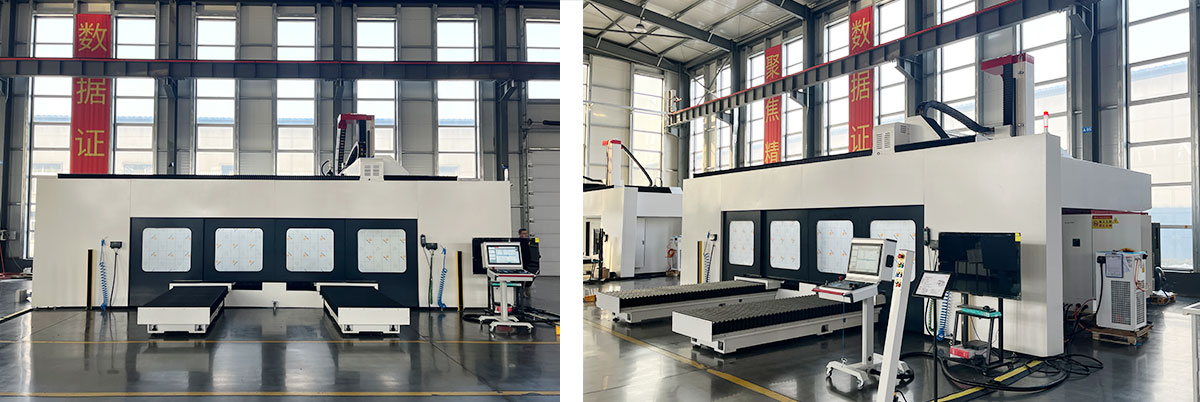

SKY363D series case display
Typical Application: Advanced composite materials such as carbon fiber,glass fiber,ceramic matrix materials and so on.
<
